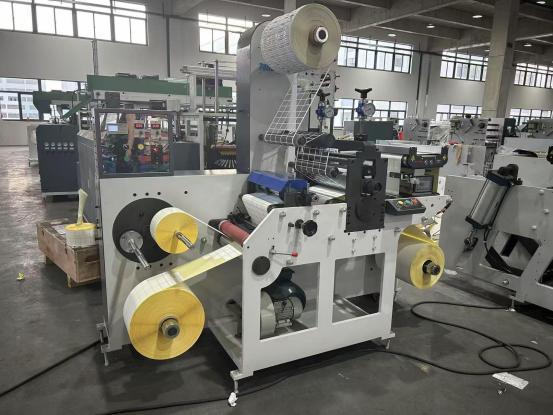

SR-350YB Rotary Blank Label Die Cuting Machine With Slitter

Name: SR350YB Rotary Blank Label Die Cuting Machine With Slitter
Brand: SUNRISE
Price: 1 USD

Wholesale SR-350YB Rotary Blank Label Die Cuting Machine With Slitter from china suppliers

Brand Name : SUNRISE

Model Number : 350YB

Certification : CE

Place of Origin : ZHEJIANG CHINA

MOQ : 1 set

Payment Terms : T/T

Delivery Time : 15 work days

Packaging Details : exported wooden case

Slitting speed : 120m/min

Max. Roll Width : 350mm

Max. Unwinding diameter : 700mm

Accuracy rate : ±0.10mm

weight : 600kg

Dimension : 1700*1000*1600mm

Magnetic size : 60T-150T

Contact Now

SR-350YB Rotary Blank Label Die Cuting Machine With Slitter

Functional characteristics:

SR-350YB model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure , fast speed , high efficiency ,easy operation ,accurate slitting and stably running and so on features.

Features:

1. Rewinder and unwinder all are with magnetic tension controller

2. Air shaft automatic inflate air

Model	SR-350YB	SR-450YB
Slitting speed	120m/min	120m/min
Max. Roll Width	350mm	450mm
Max. Unwinding diameter	700mm	700mm
Max. rewinding diameter	600mm	600mm
Accuracy rate	±0.10mm	±0.10mm
weight	600kg	800kg
Dimension	170010001600mm	180013001700mm
Magnetic size	60T-150T	60T-150T

Main Parts:

NO.	Parts Name	Brand
1	Transducer	Taiwan shilin
2	Photoelectric eyes	Baideli
3	Proximity Switch	Germany--Leuze
4	Relay	China--Chnt
5	Buttons	French--Schneider
6	A.C.Contactor	China--Chnt
7	Counter	Ruixiang

SR-350YB Rotary Blank Label Die Cuting Machine With Slitter
